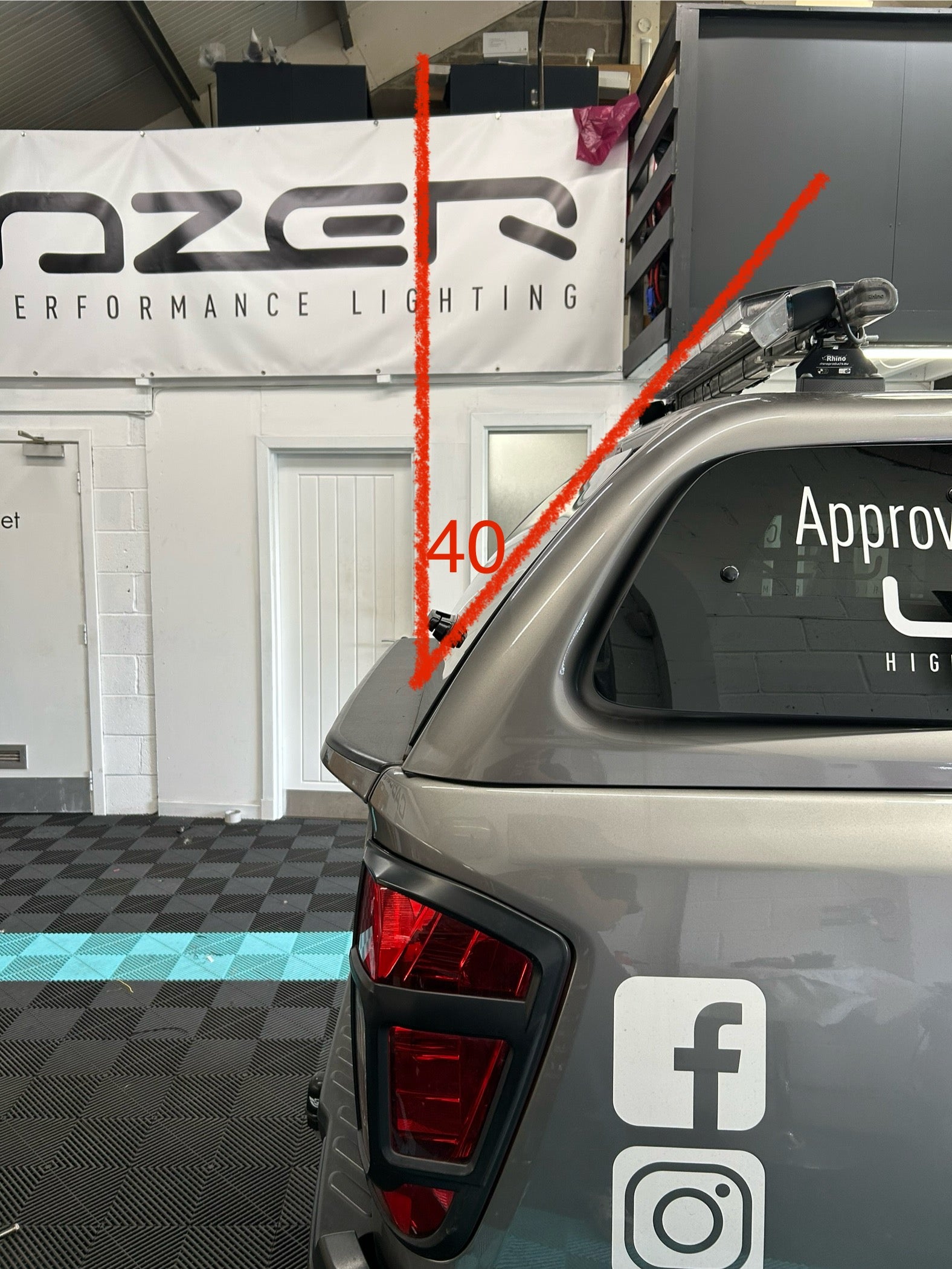

3D Printed 50° Window pod with Amber Warning Light

We weren’t happy with the current window pods for amber warning lights so we decided to try our hand at designing our own.

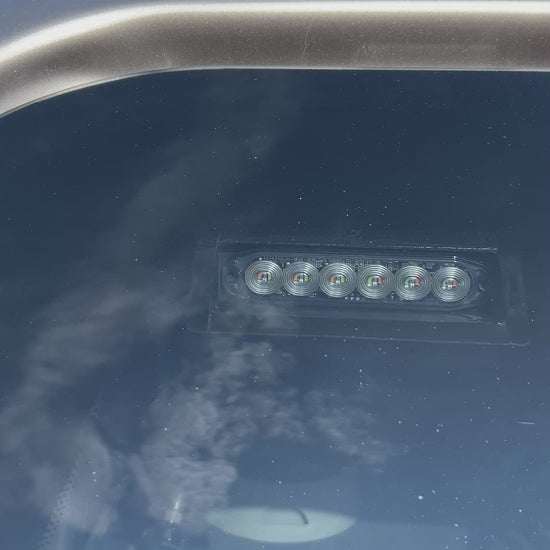

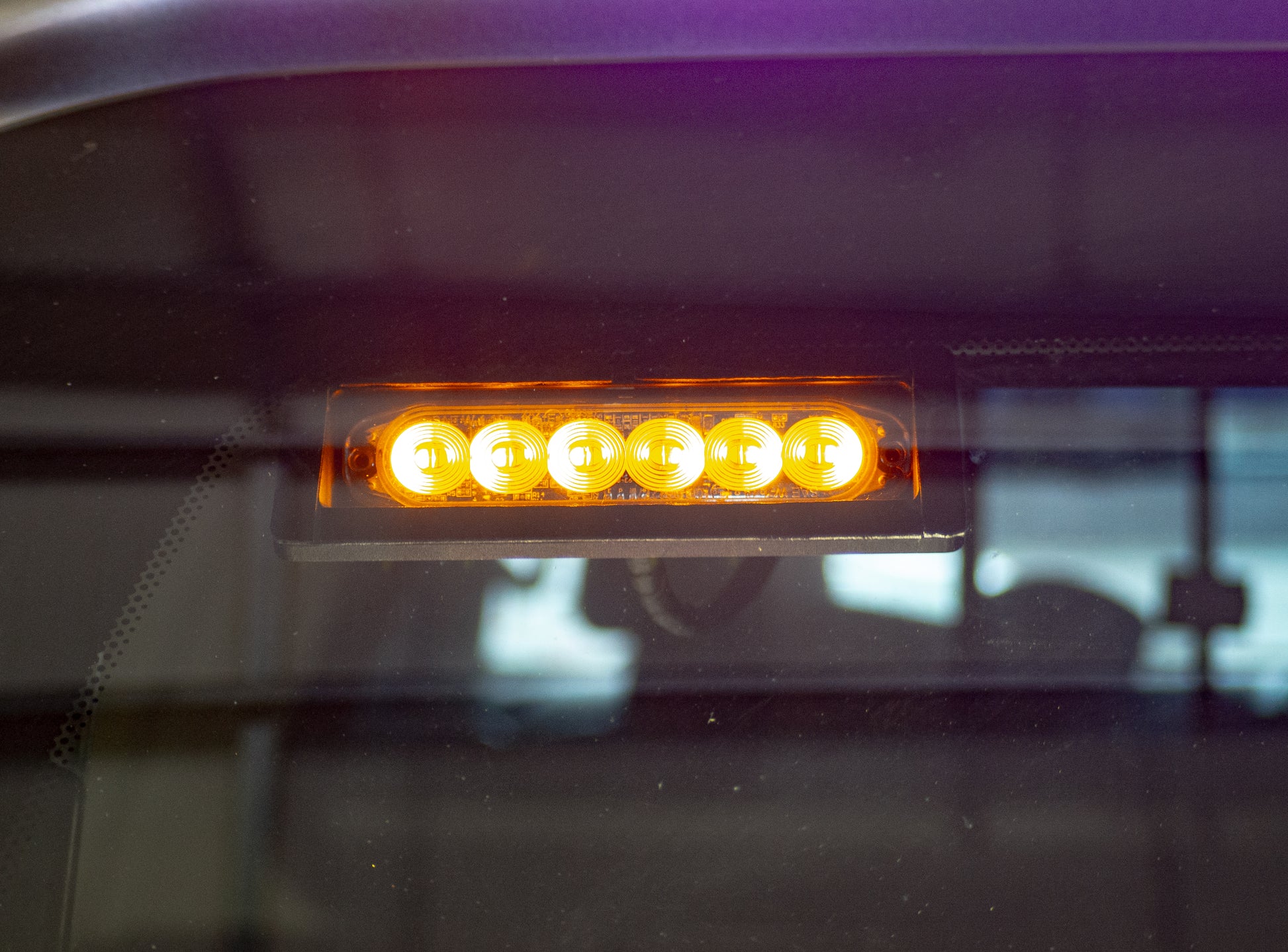

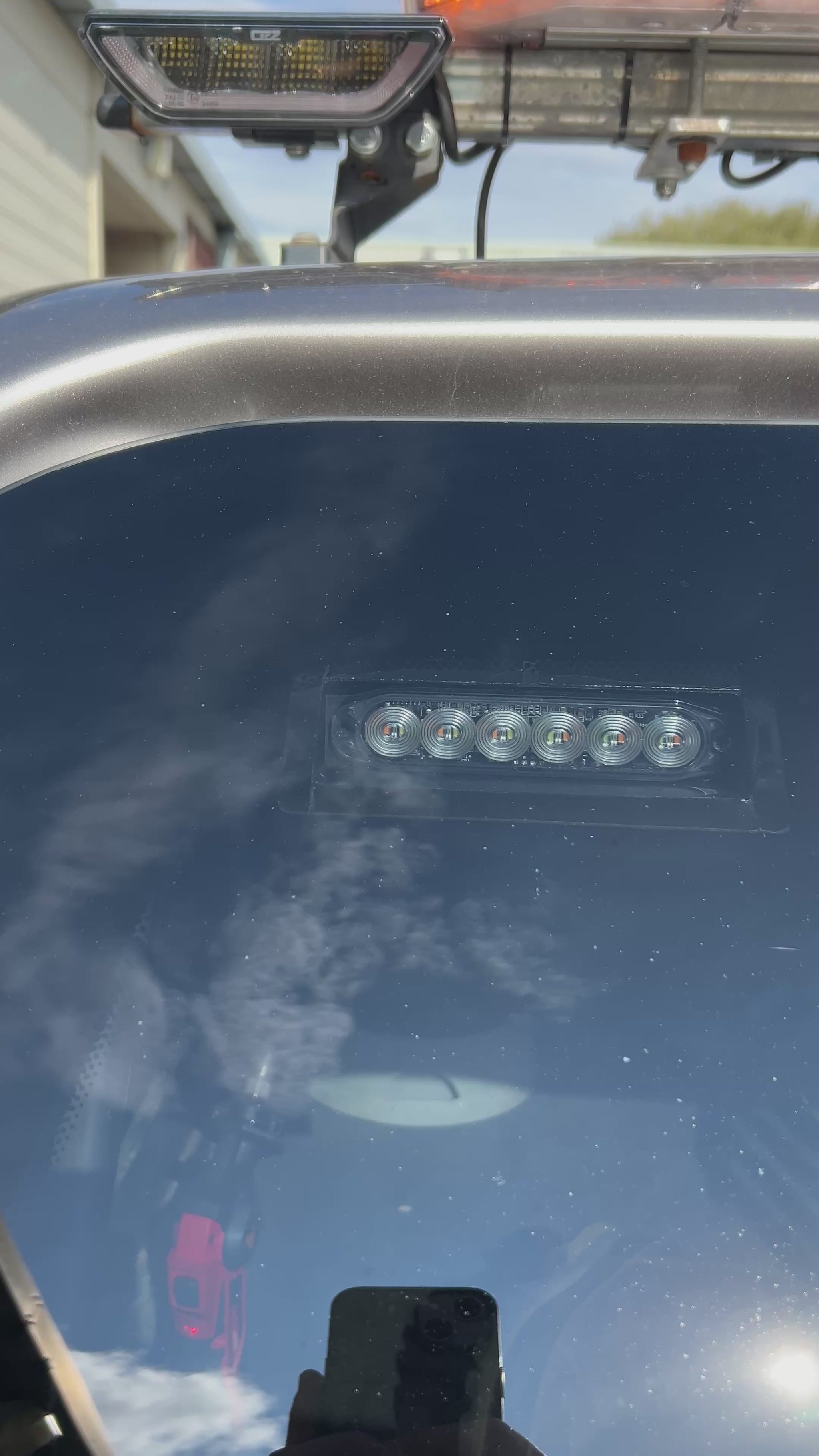

Slimline Rear Window Mount Pod for Flashing Amber LEDs

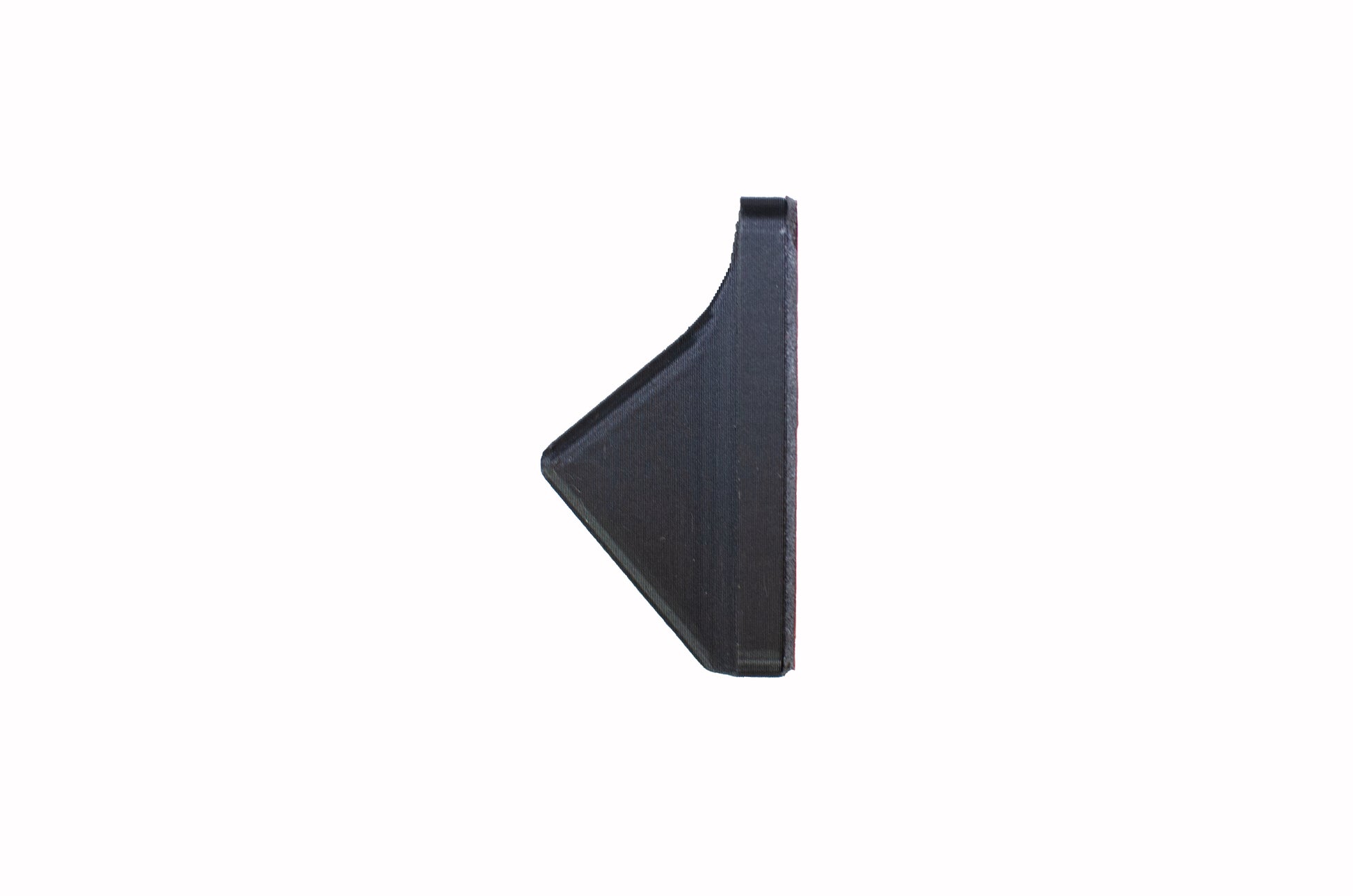

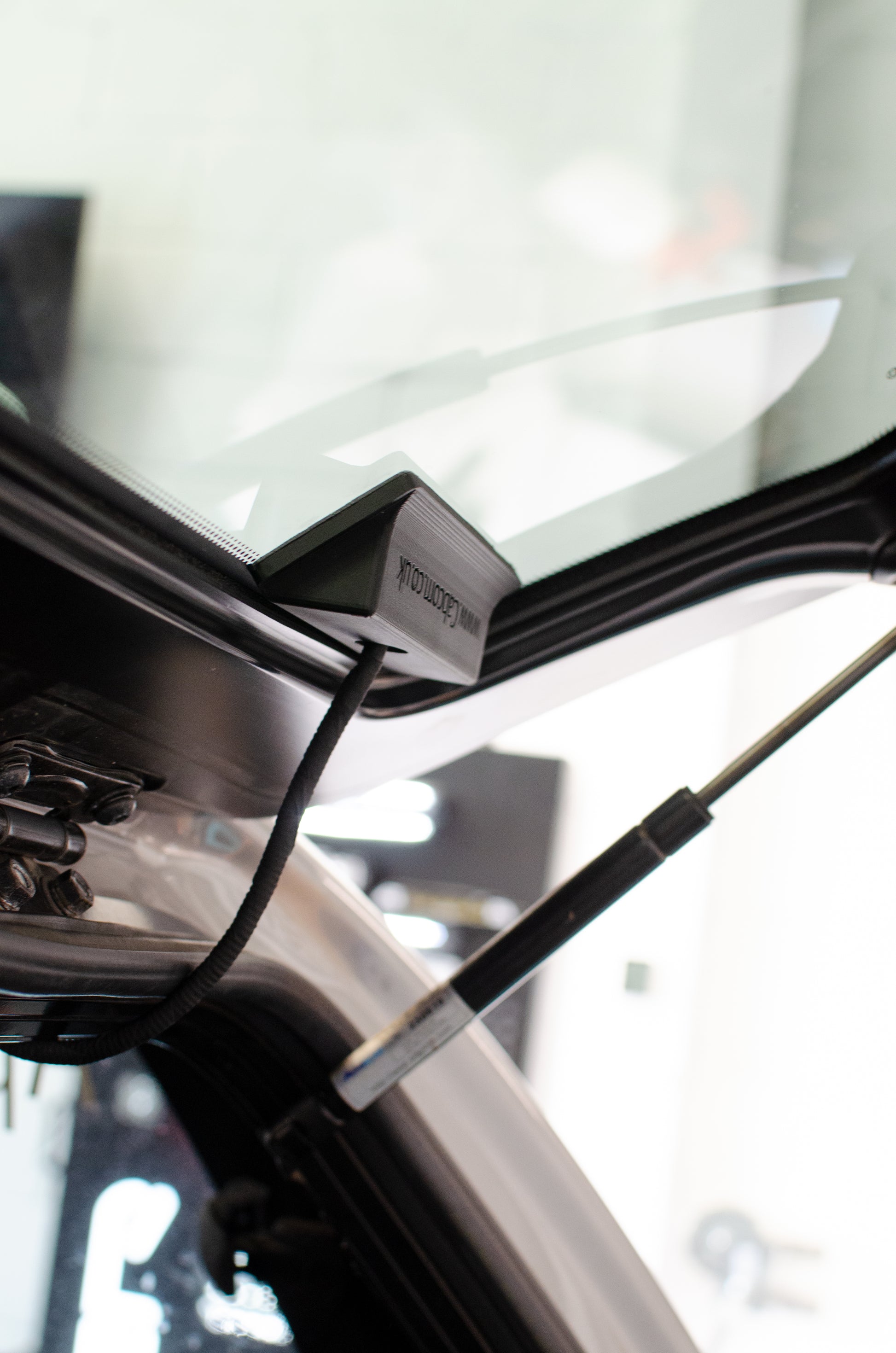

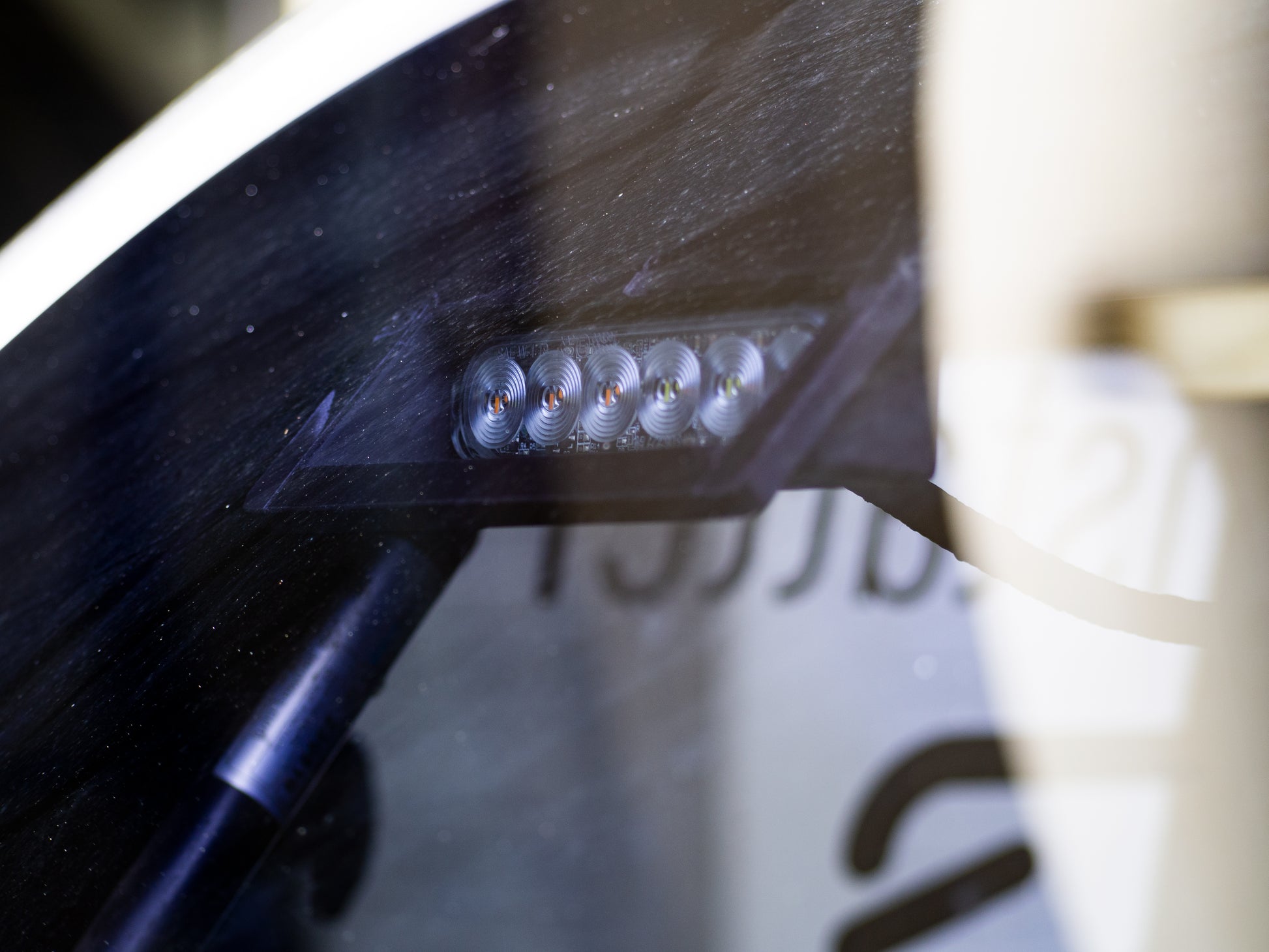

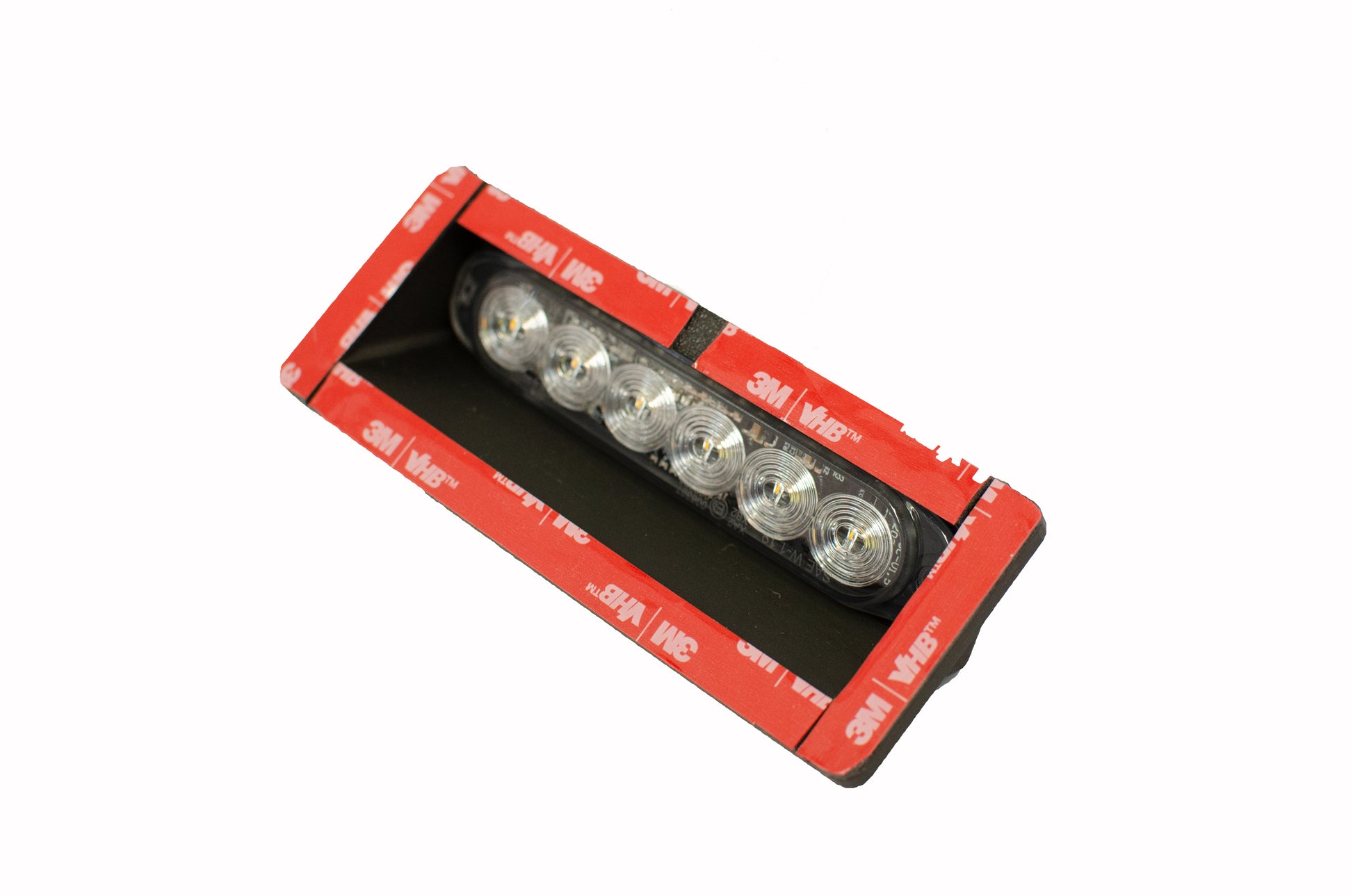

This 3D printed mount pod is specifically designed for Response Vehicle Lighting Lumax amber warning lights, delivering a secure and discreet installation for flashing amber lights. Its slim, low-profile design maximizes visibility through the rear window ensuring a clean, unobtrusive look. Once the lights are off, the mount becomes virtually invisible from outside the vehicle maintaining a factory-style finish. Built from durable 3D-printed material, this mount offers strength and reliability for demanding applications. It is ideal for cars, 4x4s, and vans used in emergency, utility, and service roles. Additional designs for other window angles and configurations are coming soon, making this the first in a growing range of professional mounting solutions.

3D printed amber warning light pod for 50° windows. Comes with Response Vehicle Lighting Lumax amber warning light.

Price is for 1 light and pod

Light Specs

• Compact at only 7mm deep, high output 3 Watt LEDs with R65 approved performance.
• There are separate input wires, 1 for each colour so that each colour can be controlled separately and will alternate flash if multiple colours are activated at the same time.
• Each input wire can be configured to its own individual flashing pattern, it is also possible to set different flashing patterns when multiple input wires are activated at the same time.
• Theses LED modules are designed to sync and connect to multiple products within the Lumax range that we now have in stock!

Main Features:

– Dual voltage 12/24Vdc
– ECE R65 & R10 Approved
– TIR lens
– Long life LED technology
– 6 x 3 Watt LEDs
– 26 User selectable flash patterns including steady burn
– Multiple units can link for synchronised and alternating flash
– Memory to remember last selected flash pattern
– Average current 0.46A @ 12V
– Fixing type: 2 point
– Mounting type: surface/bracket
– 200mm of  cable

Up to 20 modules will sync for alternating, simultaneous, or split flash patterns
