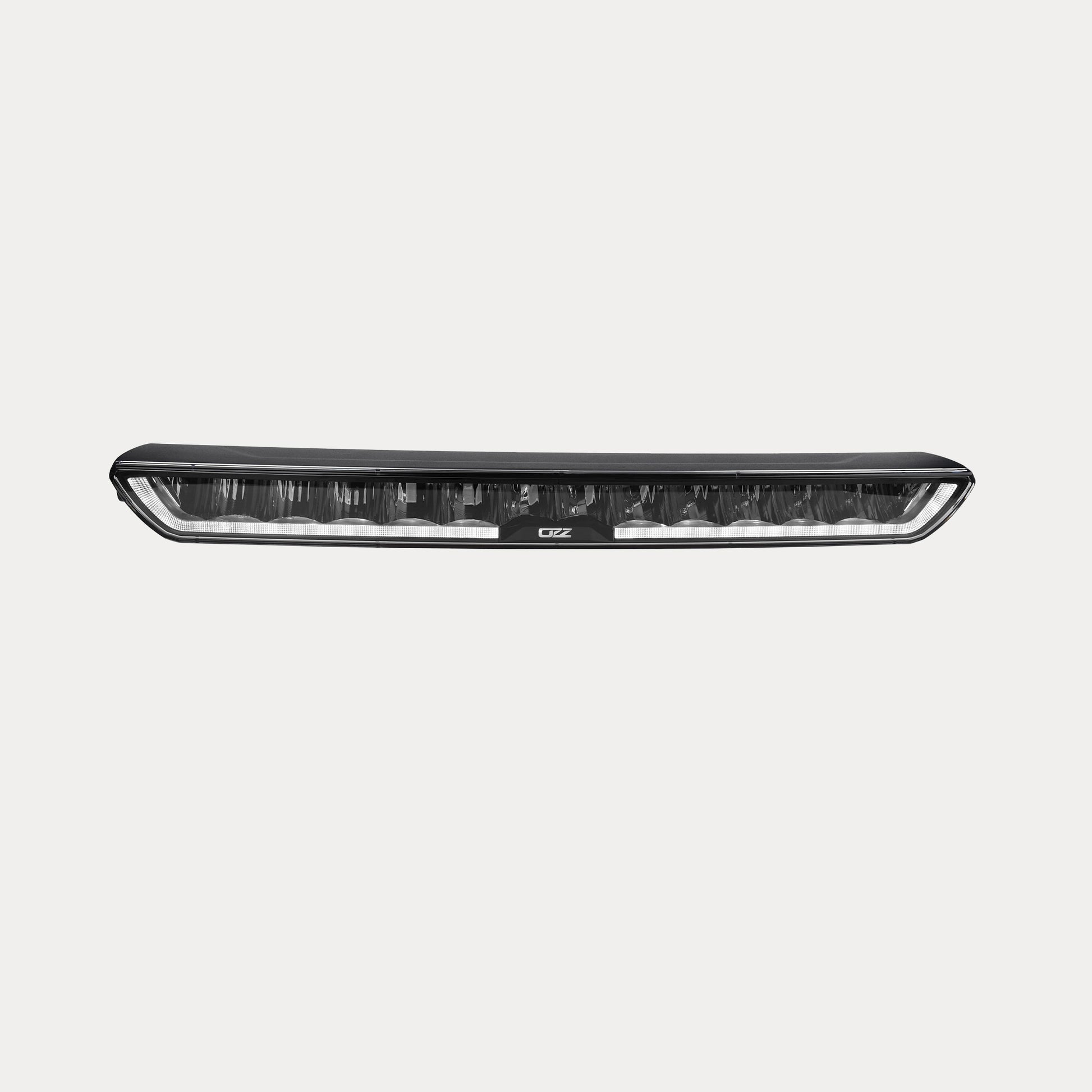

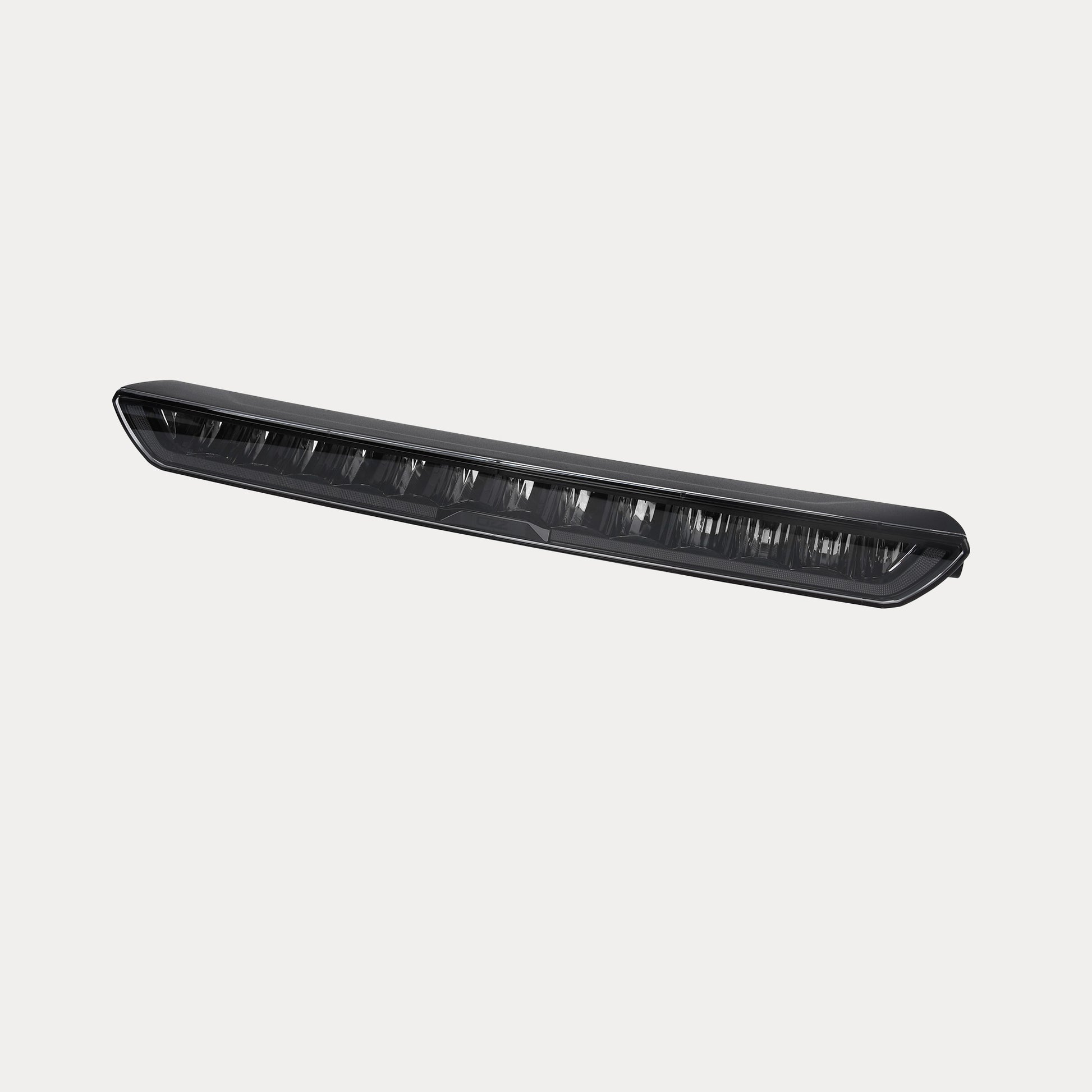

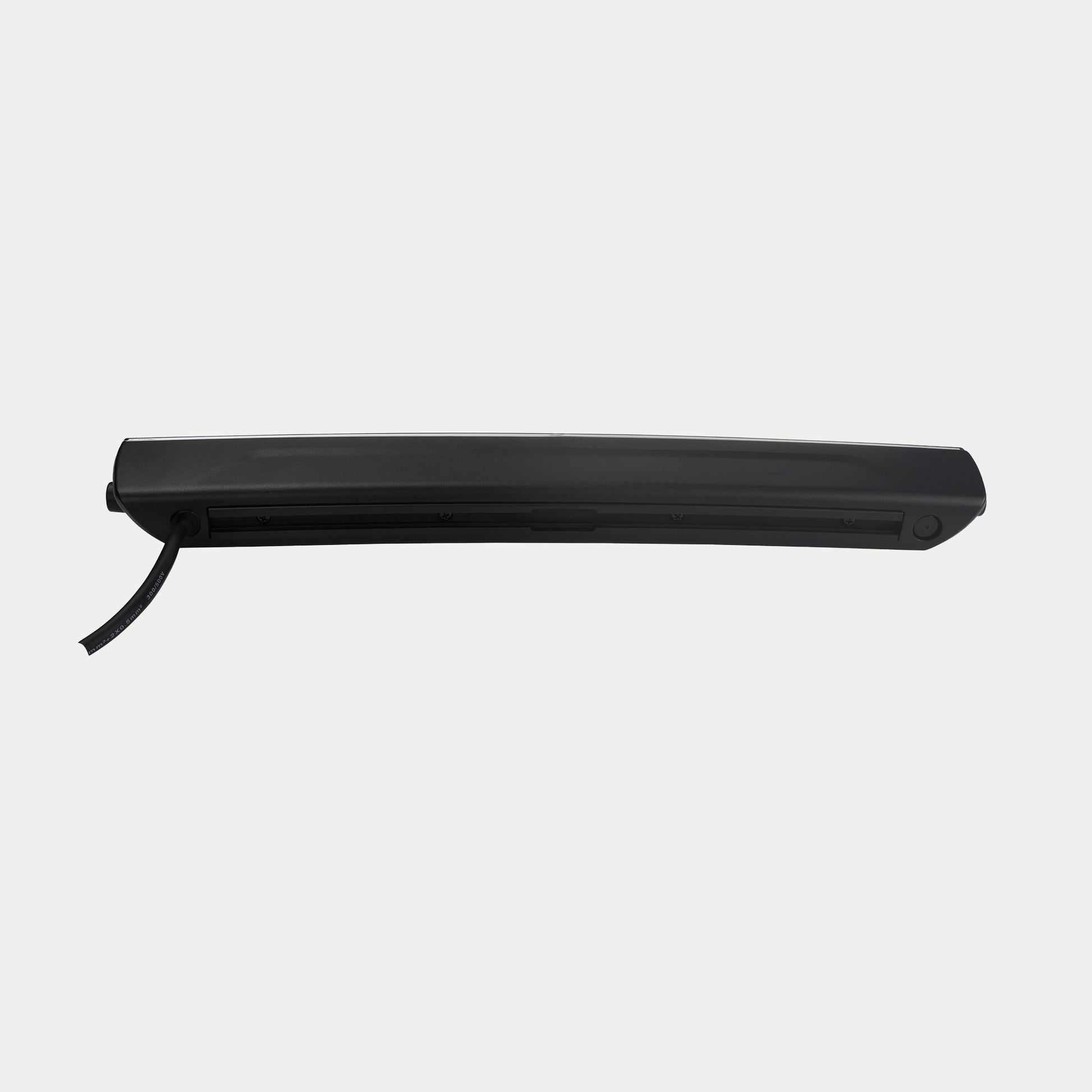

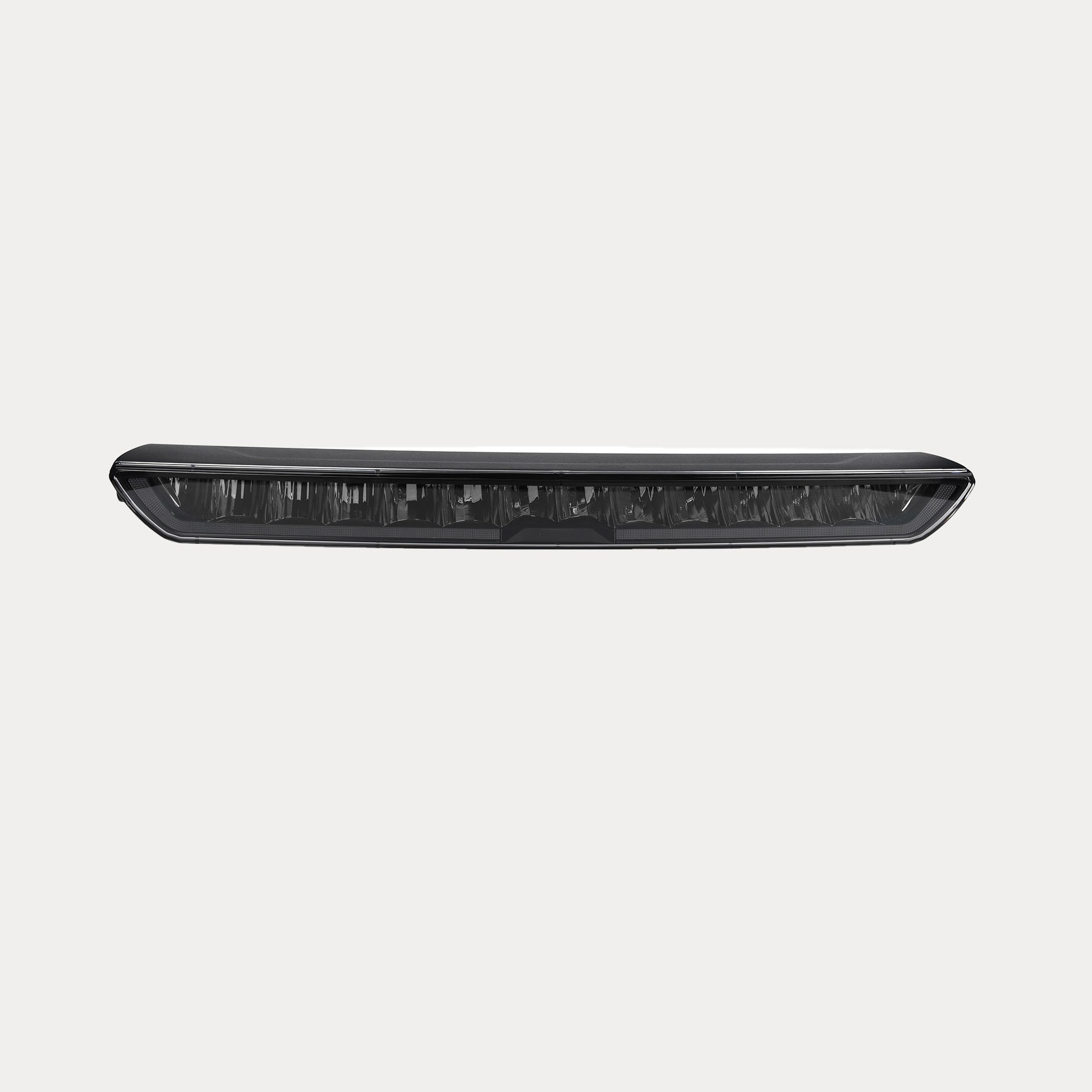

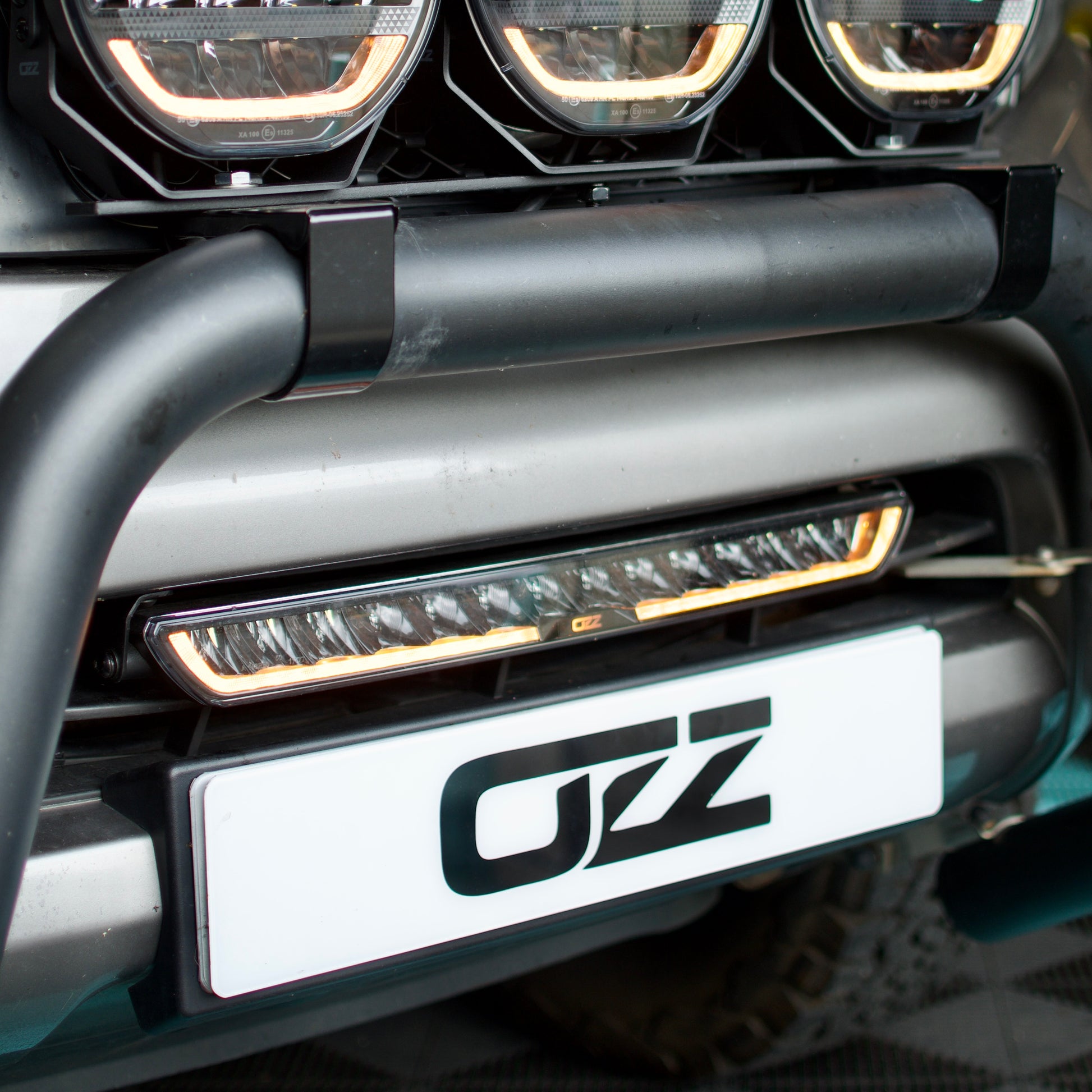

Experience the power of light with OZZ XB1 P20″ dynamic LED light bar. This innovative light bar features dynamic start-up position light in white and amber, creating a modern look for your vehicle. This 544 mm light bar delivers 7000 lumen, providing 1 lux at a distance of 610 meters. The driving beam pattern ensures optimal visibility with a wide and long-range reach. The light has a colour temperature of 5000 K, offering pleasant illumination in all conditions
Product ID: 88201
Type of lamp LED
Type of LED CREE
Pcs LED 14
Voltage 10-32V DC
Theoretical effect (W) 12V 140
Theoretical effect (W) 24V 140
Actual effect (W) 12V R112: 77W, boost: 98W
Actual effect (W) 24V R112: 73W, boost: 109W
Nominal current at 12V R112: 6,39 A, boost: 8,14 A
Nominal current at 24V R112: 3,01 A, boost: 4,54 A
Theoretical lumen (Lm) 11200
Actual lumen (Lm) R112: 4900, boost: 7000
1 lux @ R112: 480 m, boost: 610 m
Kelvin (K) 5000
IP-class (IP) IP68/IP69K
Beam pattern Driving
Position light dynamic white and amber
Connection 4-pin DT male + female
Cable length (mm) 1000
Material bracket Stainless steel
Material chassis Aluminum
Material lens Polycarbonate
LxDxH (mm) 541,5/544×80,9×50,3
Height including bracket (mm) 58,1/64,6
Operating temperature -40 – +60°C
E-mark approval R112, R7
EMC ECE R10
Ref. no 50
Weight (kg) 1,58
Warranty 3 years
